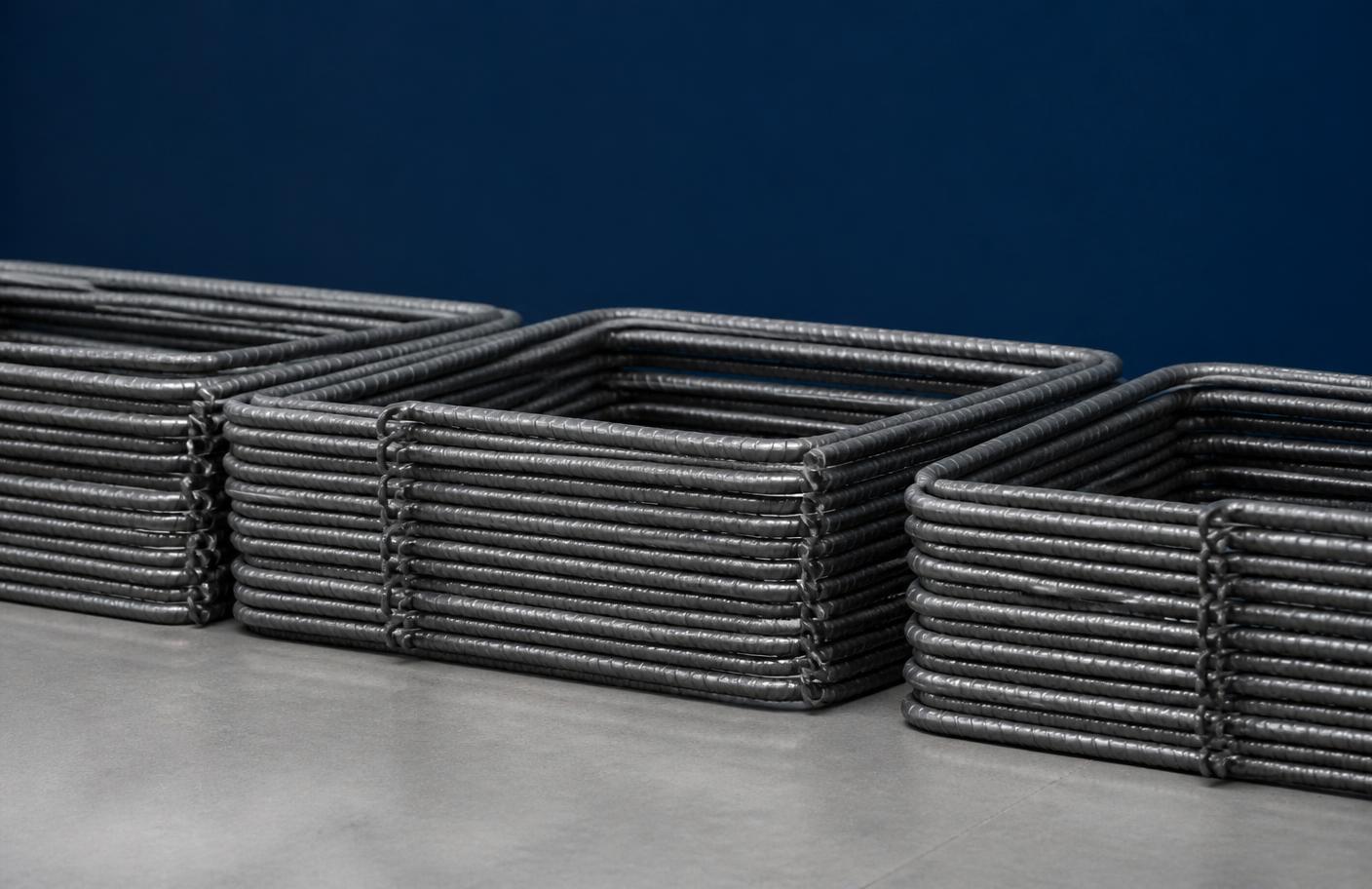

Rectangle TMT Stirrups
Ready-to-use rectangular stirrups in 6x10, 6x12 and 6x14 sizes.
Available sizes
- 6x10
- 6x12
- 6x14
Overview
About Rectangle TMT Stirrups
Rectangle TMT Stirrups from PanTMT are stronger, smarter and ready to use, supplied in uniform shape for faster construction.
Technical specification
Sectional weight chart
Verify delivered weight per metre against the BIS minimum and maximum for each size.
| Size | Standard of BIS (kg/m) | Min (kg/m) | Max (kg/m) | PanTMT (kg/m) | Pcs of bar (nos.) | Bundle wt. (kg) |
|---|---|---|---|---|---|---|
| 8 MM | 0.395 | 0.367 | 0.422 | 0.385 | 18 | 83.2 |
| 10 MM | 0.617 | 0.574 | 0.660 | 0.580 | 12 | 83.5 |
| 12 MM | 0.888 | 0.844 | 1.659 | 0.860 | 8 | 82.6 |
| 16 MM | 1.580 | 1.501 | 1.659 | 1.560 | 4 | 74.90 |
| 20 MM | 2.470 | 2.395 | 2.544 | 2.450 | 3 | 88.2 |
| 25 MM | 3.850 | 3.734 | 3.965 | 3.840 | 1 | 46.1 |
| 32 MM | 6.310 | 6.120 | 6.499 | 6.300 | 1 | 75.6 |
Swipe the table sideways to see all columns.
Properties
Chemical & mechanical properties
Comparison of conventional grades against PanTMT, as published in the PanTMT technical brochure.
| Property | Unit | Fe 415 | Fe 500 | Fe 550 | PanTMT |
|---|---|---|---|---|---|
| Yield Stress (YS) | N/mm² | 415 | 500 | 550 | 580 |
| Tensile Strength | N/mm² | 485 | 545 | 585 | 670 |
| Elongation Min | % | 14.5 | 12 | 10 | 18 |
| Carbon | % | 0.30 | 0.30 | 0.30 | 0.25 |
| Sulphur | % | 0.060 | 0.055 | 0.055 | 0.050 |
| Phosphorus | % | 0.060 | 0.055 | 0.050 | 0.050 |
| S+P | % | 0.110 | 0.105 | 0.100 | 0.100 |
| Total CRS (cr+ni+mo+p+cu) | % | — | 0.40 | 0.45 | 0.45 |
Swipe the table sideways to see all columns.
Features
Product features
- Superior strength
- Superior weld-ability
- Improved elongation
- Corrosion resistant
- Increased ductility
- High load resistant
Benefits
Why engineers specify it
- Fast construction
- Strong grip
- Uniform shape
Applications
Where this product is used
- Columns and beams
- Residential construction
- Commercial construction
- Industrial construction
Manufacturing & quality
How this bar is produced
Every PanTMT bar passes the same controlled route from raw material testing to bundling and dispatch.
Stage 1
Raw Material Yard
- Raw material receive
- Raw material composition testing
- Raw material uploading (quality wise)
Stage 2
Furnace
- Charging of raw material (standard scrap recipe)
- Composition testing (every 30 min.)
- Maintain standard temperature
Stage 3
Casting
- Checking of temperature and composition of molten metal
- Casting start
- Water quality check (every 6 hours)
Stage 4
Rolling Mill
- Rolling process start, passed from Thermex
- Checking mechanical properties of rolled material every 15 min.
- Check weight of rolled material
